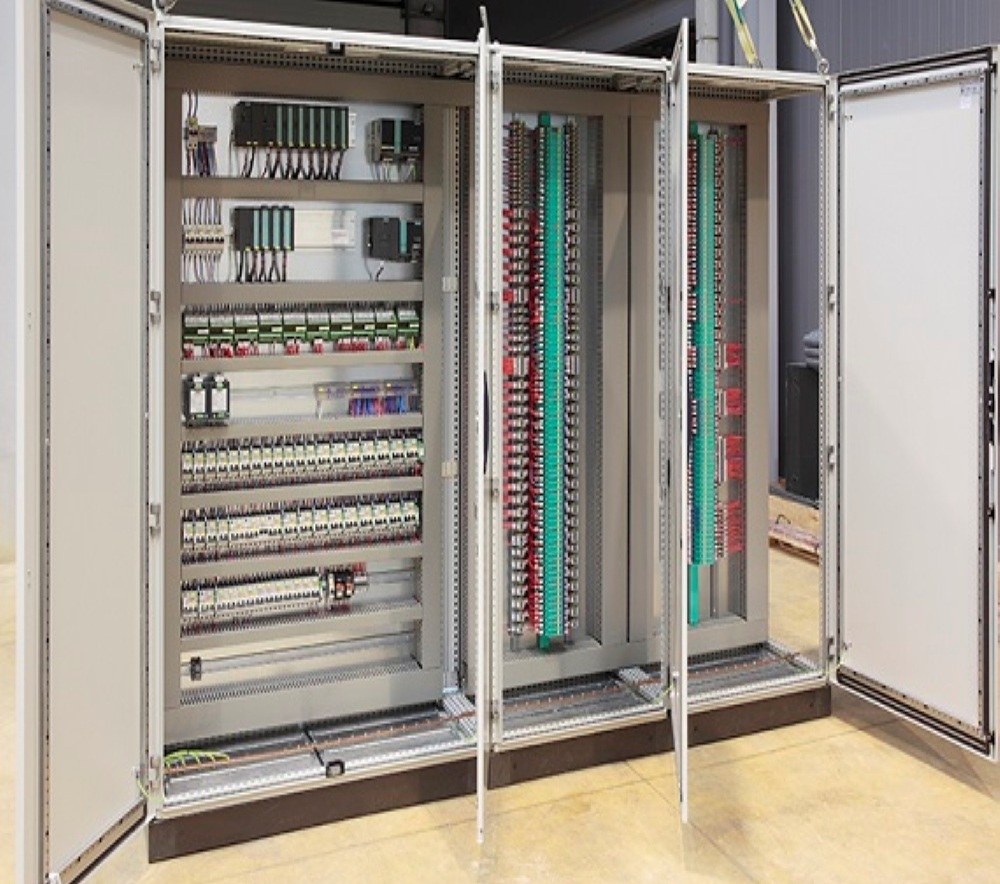

Programmable Logic Controller (PLC) Control Panels

PLC Control Panels, also known as PLC Automation Panels, are among the most efficient and essential types of control panels used in various electronic and electrical circuit applications. Our PLC Control Panels are designed for higher output with lower power consumption and are integrated with solid PLC logic and flawless PLC hardware programming.

What is a PLC?

A Programmable Logic Controller (PLC) is an industrial digital computer that is ruggedized and adapted for controlling manufacturing processes, such as:

• Assembly lines
• Robotic devices
• Other processes requiring high-reliability control, ease of programming, and fault diagnosis

PLC Components & Working

PLC systems function using two types of contacts:

• Normally Open (NO): The contact is active (ON) when pressed/closed.
• Normally Closed (NC): The contact is active (ON) when open/not pressed.

These contacts represent the states of real-world inputs such as:

• Sensors
• Switches
• Part presence detection (empty, full, etc.)

PLC systems also consist of coils, which serve as outputs controlling:

• Motors
• Pumps
• Lights
• Timers

The PLC examines inputs and automatically turns coils ON or OFF as needed. Coils can also be used as inputs to other rungs in the ladder diagram, allowing for complex automation sequences.

Power Plant Automation & Substation Automation

Power-Plant Automation is the process of automatically controlling the power system through instrumentation and control devices. Substation Automation involves utilizing data from Intelligent Electronic Devices (IEDs), control and automation capabilities within the substation, and remote control commands to operate power-system devices efficiently.

Since full substation automation depends on substation integration, the terms are often used interchangeably. Power-system automation includes processes associated with power generation and delivery, ensuring:

• Continuous monitoring of power systems
• Efficient control of power delivery
• Reduction in outages
• Quick restoration of services during failures

The system relies on IEDs, communication protocols, and communication methods working together to automate the power system. The term “power system” refers to all devices involved in power generation, transmission, and distribution, while “Instrumentation and Control (I&C) systems” refer to devices monitoring, controlling, and protecting these power systems.

Applications

Overcurrent Protection

All electrical lines and equipment must be protected against prolonged overcurrent. If the overcurrent source is nearby, the system immediately interrupts it. If the issue is external, a backup mechanism disconnects affected circuits after a time delay.

However, disconnection may trigger a cascade effect, causing overcurrent in other circuits that must also be disconnected. Additionally, generators that suddenly lose their load due to protection mechanisms must shut down automatically, leading to a time-consuming process to restore balance between demand and supply. Synchronization is required before reconnecting system parts.

SCADA (Supervisory Control and Data Acquisition)

A SCADA system transmits and receives logic and data for control, metering, safety, and monitoring in industrial applications. It enables:

• Remote control of power system elements (from pole-mounted switches to entire power plants)
• Telemetering of grids (measuring voltage, current, power direction, consumption in kWh, etc.)
• Automatic synchronization in some power systems

Optical Fiber for Power Systems

Power utility companies monitor high-voltage lines constantly for protection. This requires information transmission between substations to detect and control alarms and failures.

Legacy telecom networks relied on metallic wires, but substations have high electromagnetic fields that interfere with copper wires. Originally, 56–64 kbit/s channels used conductive media, but they proved unreliable due to:

• Electromagnetic interference
• Signal ground loops
• Ground potential rise

To overcome these challenges, optical fiber technology is now used, providing reliable, interference-free communication in high-voltage environments.

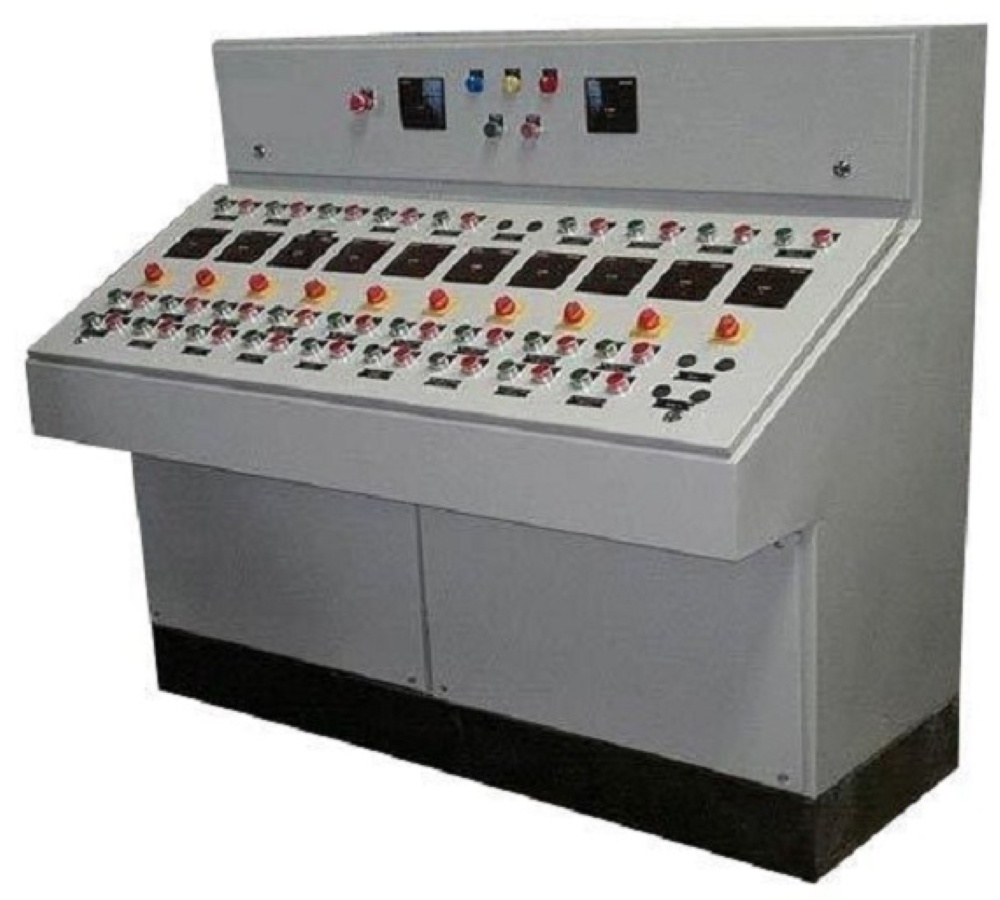

Control Desk Panel

As a well-established organization, we take pride in offering a wide range of Control Desk Panels. Designed with cutting-edge technology and premium-grade materials, our desk panels ensure high performance and reliability.

Each panel undergoes rigorous quality checks at multiple stages of manufacturing to ensure a defect-free and high-quality product. We offer these panels in various specifications to meet the diverse needs of our clients.

Features

• Precision-designed
• Strong and sturdy construction
• Excellent durability
• Easy to operate
• Long functional life
• Robust and reliable performance

Our Control Desk Panels are ideal for industries requiring efficient control and monitoring solutions. Contact us today to discuss your requirements and find the perfect solution for your business!

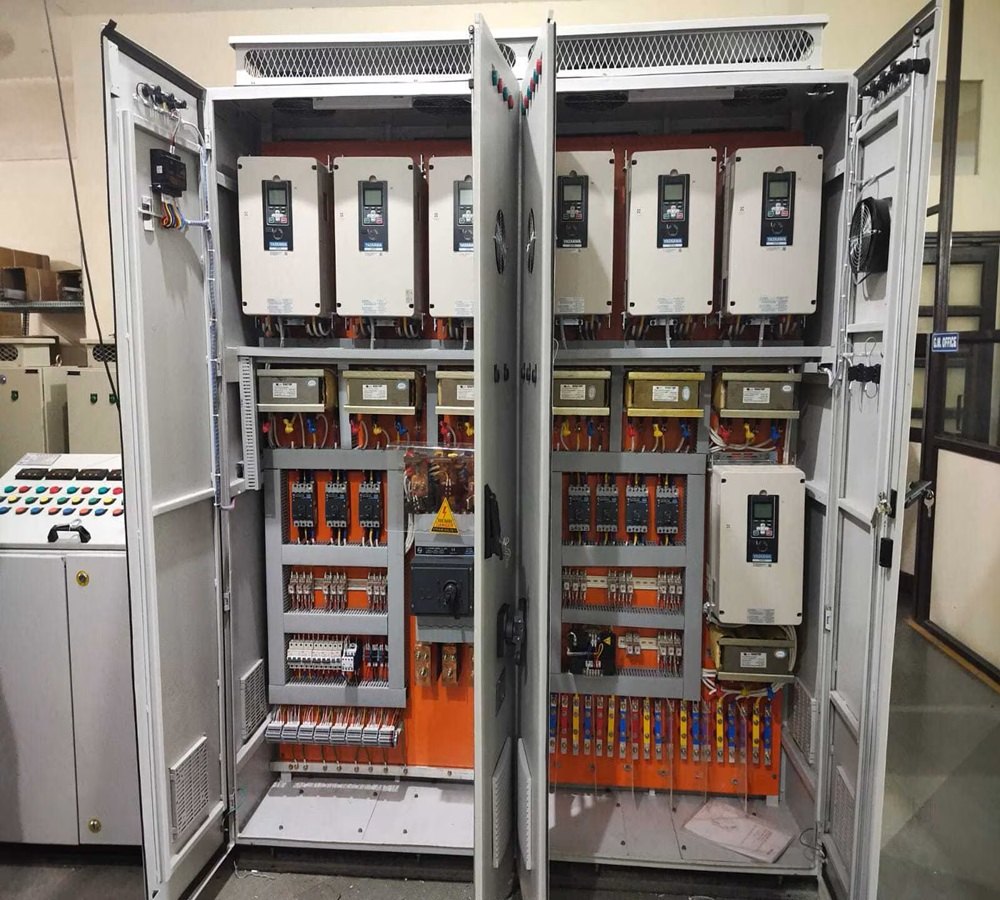

Drive Panels

GS Control Pvt. Ltd. offers a wide range of AC/DC Drive Panels, developed using the highest grade raw materials sourced from reliable market vendors. These panels are designed for various process control applications in industries such as the sugar industry, paper industry, cement industry, food industry, chemical industry, and pumping applications.

Our drive panels are widely appreciated for their high efficiency, durability, and exceptional performance. They provide smooth motor control by regulating frequency and voltage, ensuring reduced power consumption and enhanced operational efficiency.

How VFD Works

When a Variable Frequency Drive (VFD) starts a motor, it initially applies a low frequency and voltage to prevent high inrush currents. The starting frequency is typically 2 Hz or less, ensuring smooth acceleration without excessive current draw.

• Gradually increases applied frequency and voltage to ramp up speed.
• Ensures 150% rated torque with only 50% rated current.
• Prevents the high inrush current (typically 300%) seen in traditional motor starts.
• Delivers stable 150% starting torque from rest to full speed.

Key Features

• High efficiency for improved energy savings.
• Low maintenance and long operational life.
• Simple installation and user-friendly interface.

Applications

• Electric elevators for smooth speed control.
• Factory transmission belts for automated production lines.
• Steamship pumps and engines for marine applications.
• High-speed motor control in industrial settings.
• Pumps and fans for HVAC and industrial cooling systems.
• Centrifugal applications for optimized performance.

MIMIC – Simulation Computer Language

MIMIC, always written in capitalized form, is a former simulation computer language developed in 1964 by H. E. Petersen, F. J. Sansom, and L. M. Warshawsky of the Systems Engineering Group within the Air Force Materiel Command at Wright-Patterson AFB in Dayton, Ohio, United States.

It is an expression-oriented continuous block simulation language with the capability of incorporating FORTRAN-like algebra. MIMIC evolved from MIDAS (Modified Integration Digital Analog Simulator), which represented analog computer design.

Key Features

• Written completely in FORTRAN with one routine in COMPASS.
• Ran on Control Data supercomputers, enabling large-scale simulation models.
• Capable of solving ordinary differential equations (ODEs) through numerical integration.
• Applies to various scientific disciplines including:
  • Engineering
  • Physics
  • Chemistry
  • Biology
  • Economics
  • Social Sciences
• Analyzes nonlinear dynamic conditions.

Simulation Process

The MIMIC software package consists of FORTRAN overlay programs that execute input statements of the mathematical model in six consecutive passes.

• Programs written in MIMIC are compiled rather than interpreted.
• Uses a variable-step numerical integrator based on the fourth-order Runge-Kutta method.
• Includes built-in functions for electrical circuit elements and mathematical operations.
• Automatically sorts statements based on variable dependencies, eliminating manual sorting.

Software Structure

MIMIC consists of several organized overlays:

• MIMIN (Input) – Reads the user simulation program and data.
• MIMCO (Compiler) – Compiles the user program into an in-core instruction array.
• MIMSO (Sort) – Sorts instructions based on variable dependencies.
• MIMAS (Assembler) – Converts BCD instructions into machine-oriented code.
• MIMEX (Execute) – Executes the program through numerical integration.
• MIMOUT (Output) – Outputs the results in a list or diagram format.

MIMIC played a crucial role in early simulation technologies, providing a powerful tool for solving complex mathematical models across various scientific fields.

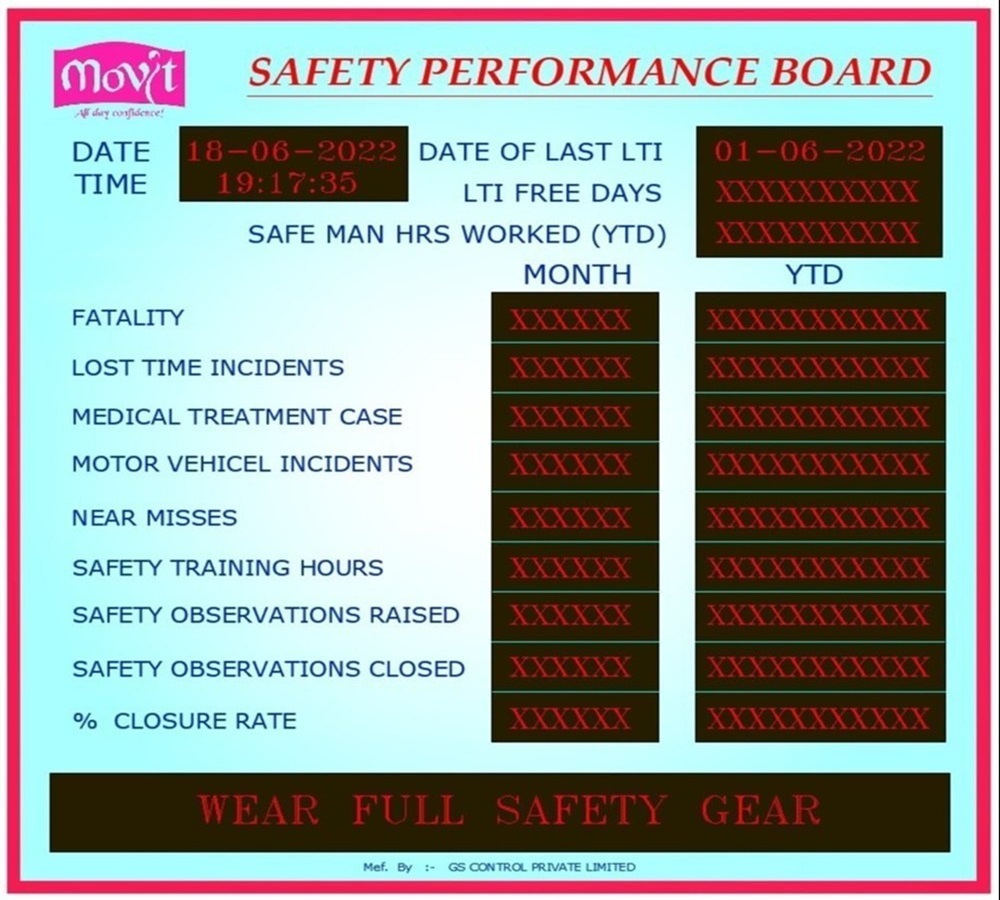

Safety Display Board (Accident Free Day Display Board)

The Safety Display Board is designed to show the total accident-free days calculated in a factory. It operates on an RTC (Real-Time Clock) and automatically increments the accident-free days daily. The target value can be set using a dedicated PC software utility.

Key Features

• Automatically updates accident-free days every day.
• Operates using a Real-Time Clock (RTC).
• Customizable target values via PC software utility.
• Ensures real-time monitoring of workplace safety statistics.

Additional Display Information

The display can also show the following safety-related values:

• Date
• Safe Working Hours
• Number of First Aid Cases
• Number of Reportable Accidents
• Date of Last Accident
• Total Accident-Free Days

Our Safety Display Board helps industries track and improve workplace safety by providing real-time updates on key safety metrics, ensuring a safe and compliant working environment.
