NGR PANEL
The NGR Panel houses a Neutral Grounding Transformer (NGT) and a Neutral Grounding Resistor (NGR), which are essential for grounding or earthing the neutral current during an unbalanced three-phase generator load. This setup ensures proper generator protection.
Functionality
The Neutral Grounding Transformer (NGT) steps down the voltage of the neutral bus from 6.6 KV, 11 KV, or 15.75 KV to 110V or 220V. This reduced voltage is then connected to a neutral grounding resistor and an earth terminal to bring the neutral bus voltage as close as possible to zero.
Key Features
- Compact & Safe: Designed to optimize space while ensuring safety.
- Economical: Cost-effective solution for grounding needs.
- Easy Maintenance: Vertical bus bars simplify servicing, even in double-front panels.
- Reliable Performance: Fully type-tested bus bar system.
- Space-Saving Design: Compact depth for efficient use of switchgear rooms.
- Improved Accessibility: Wider cable alley for easy termination.
Quick Enquiry Form
Share your requirements — we’ll get back to you shortly.

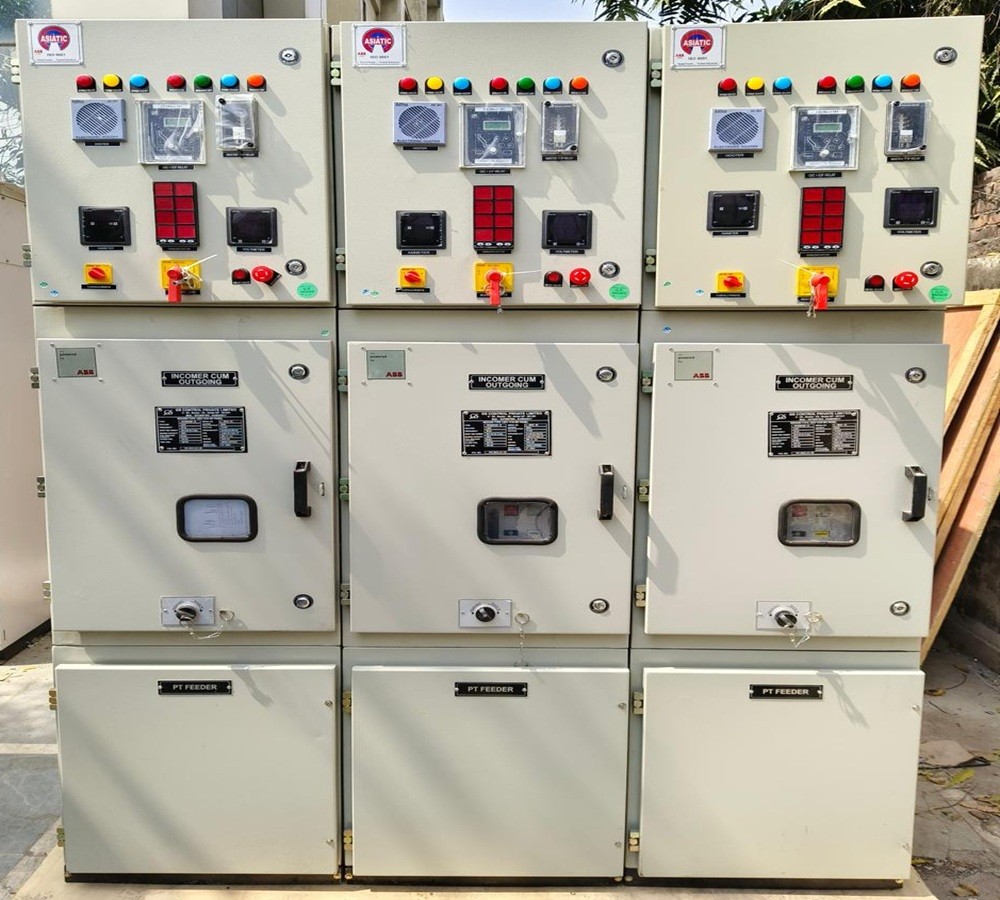

Vacuum Circuit Breaker (VCB)
The 11/22/33KV Vacuum Circuit Breaker (VCB) Panel is designed for transformer protection, ensuring reliability and safety. Manufactured to meet strict industry standards, these panels are known for their superior quality and cost-effectiveness. VCB panels are available from original equipment manufacturers (OEMs) for new installations, repairs, retrofits, and upgrade projects.
How VCB Panels Work
A VCB panel is a type of circuit breaker where the arc quenching occurs in a vacuum environment. This technology is best suited for medium voltage applications. Although it can be used for higher voltages, it is not commercially viable.
Key Features & Materials
- Utilizes CuCr (Copper Chromium) for electrical contacts, ensuring high performance.
- Requires minimal maintenance compared to other relay control panels.
- Ideal for industrial, commercial, and power distribution applications.
Why Choose VCB Technology?
VCB is one of the most trusted and reliable current interruption technologies in medium voltage switchgear. Engineers continue to enhance its efficiency and durability, making it a preferred choice for modern electrical systems.

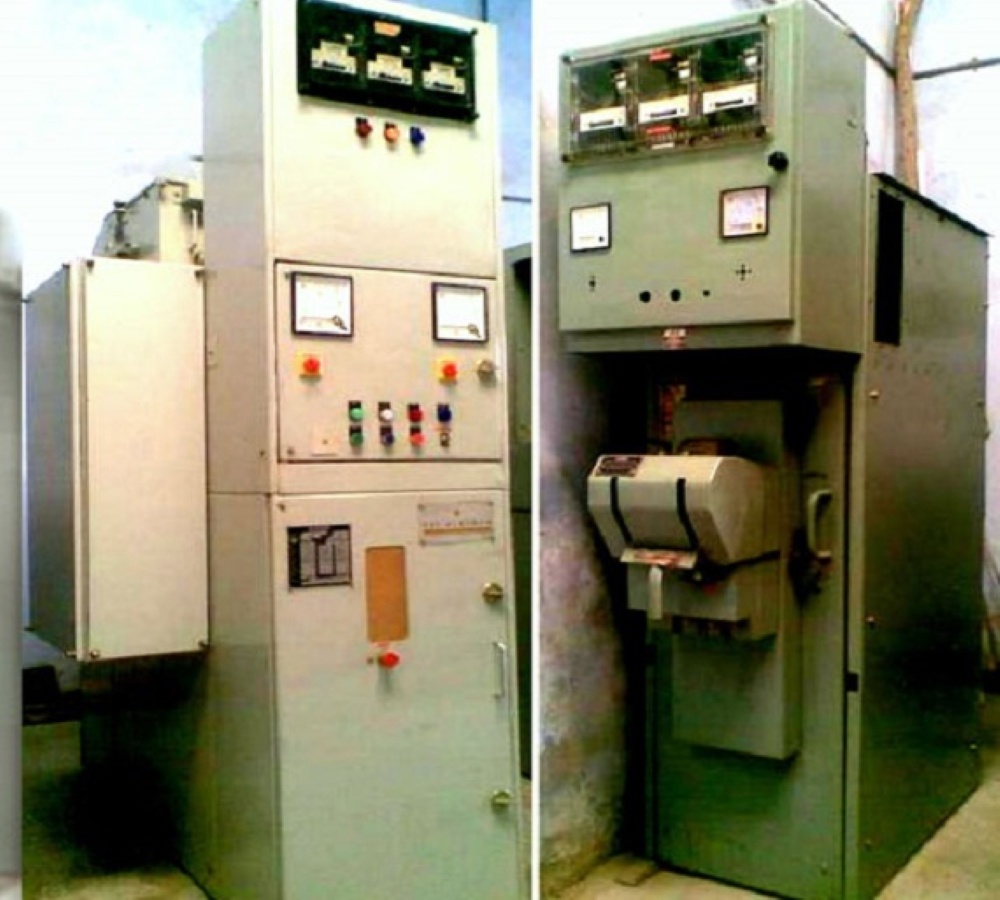

OCB Panel
We offer a premium quality range of OCB Panels, widely used in both industrial and commercial sectors for efficient power transmission. These panels are manufactured using state-of-the-art technology under the strict supervision of trained professionals.
To ensure flawless performance, each OCB Panel undergoes rigorous quality checks before being dispatched to clients. Available in various power capacities and configurations, these panels cater to diverse industry needs.
Key Features
- High Efficiency: Ensures optimal power management.
- Accurate Functioning: Designed for precision and reliability.
- Easy Installation & Maintenance: User-friendly design for hassle-free setup and servicing.
